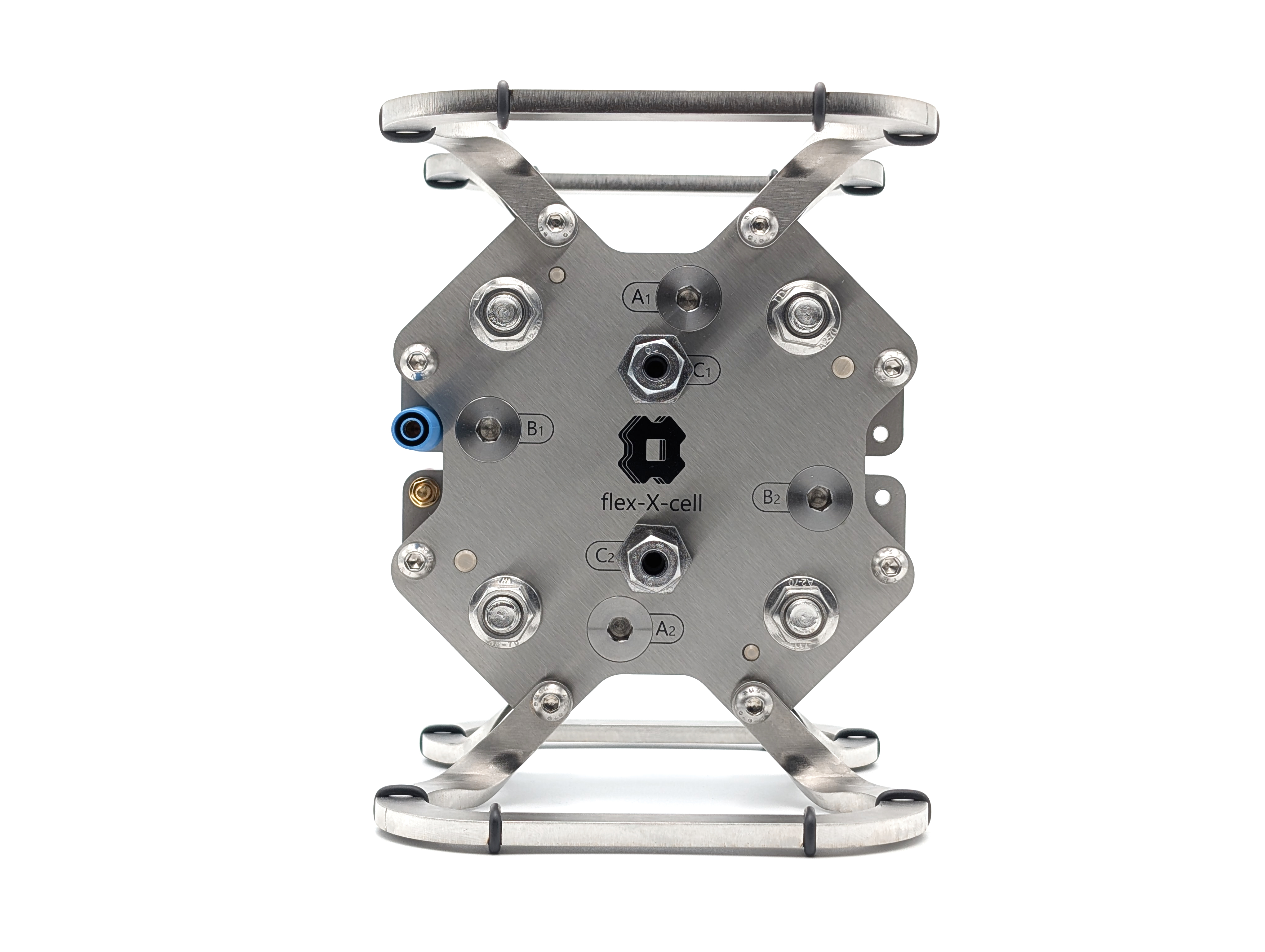

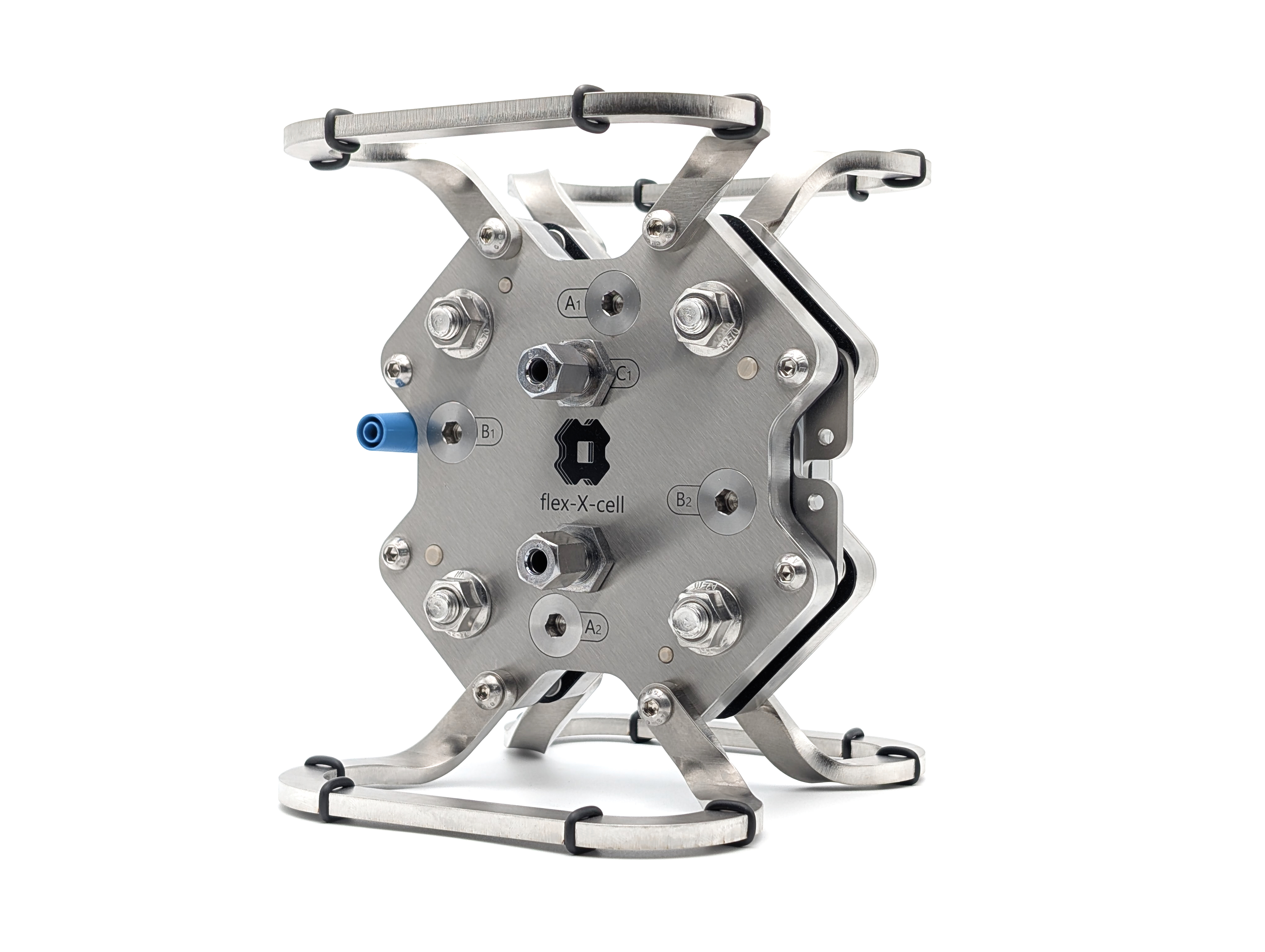

flex-X-cell M for AEM electrolysis

Modular AEM electrolysis cell with 25 cm² active area, two-channel configuration, and nickel current collectors with serpentine flow fields. Typical applications include catalyst and electrode screening, membrane testing, and porous transport layer evaluation.

From€4,080

Excluding taxes. Final pricing depends on configuration and quantity.

Typical lead time: 1–3 months

ⓘ

Lead time depends on component availability and product requirements. It may be shorter when all required components are in stock. Customized products or configurations may take longer. The expected lead time will be confirmed in the quotation.

Configure your cell

Anode flow-frame thickness

ⓘ

Choose the frame thickness to match the thickness the electrode or porous transport layer should have after compression in the assembled cell. The frame sets the space available for the material and therefore its compression.

Membrane frame thickness

ⓘ

Choose the frame thickness to match the membrane’s thickness in the assembled cell, accounting for any compression or swelling expected during operation.

A membrane frame allows a smaller membrane. Without a membrane frame, a full-size membrane covering the sealing area is required. Final compatibility will be confirmed with the quotation.

Cathode flow-frame thickness

ⓘ

Quantity

Request quotation

Opens an email draft for this product.

Email not opening? Show request text

Quotation request

Dear FXC Engineering team,

I would like to request a quotation for the following product:

flex-X-cell M for AEM electrolysis, Active area: 25 cm², Qty: 1
Configuration:
- Anode flow-frame: 250 µm
- Membrane frame: 100 µm
- Cathode flow-frame: 200 µm

Additional requirements or customization:
- ...

Best regards,

Collect multiple products for one quotation request.

Included components

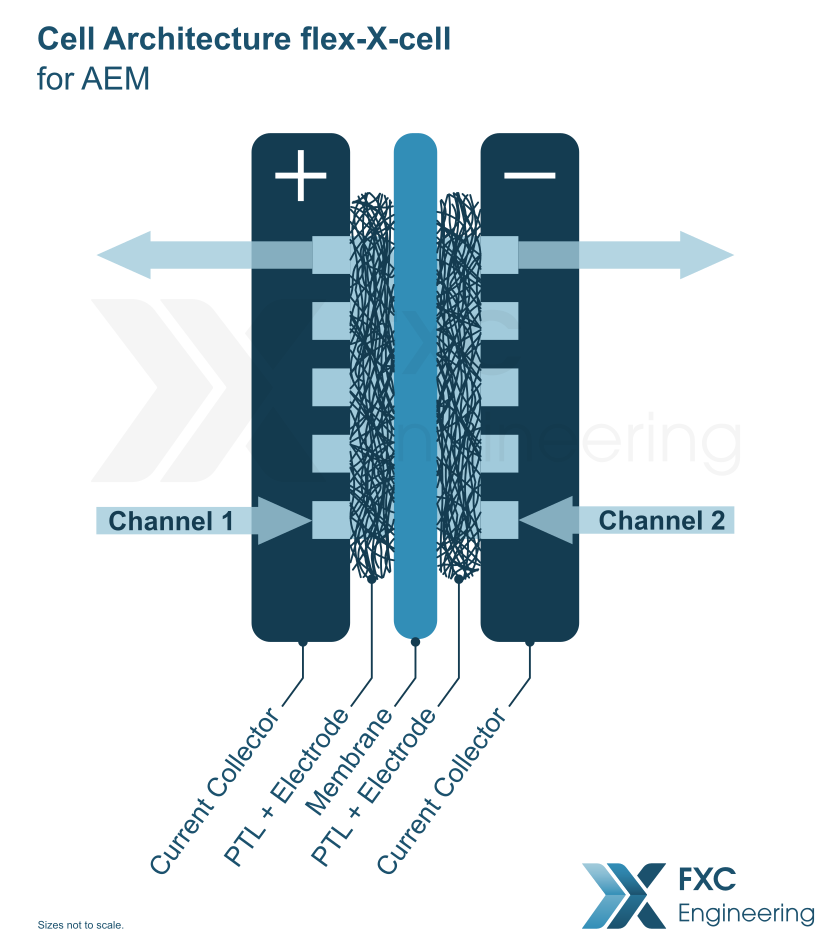

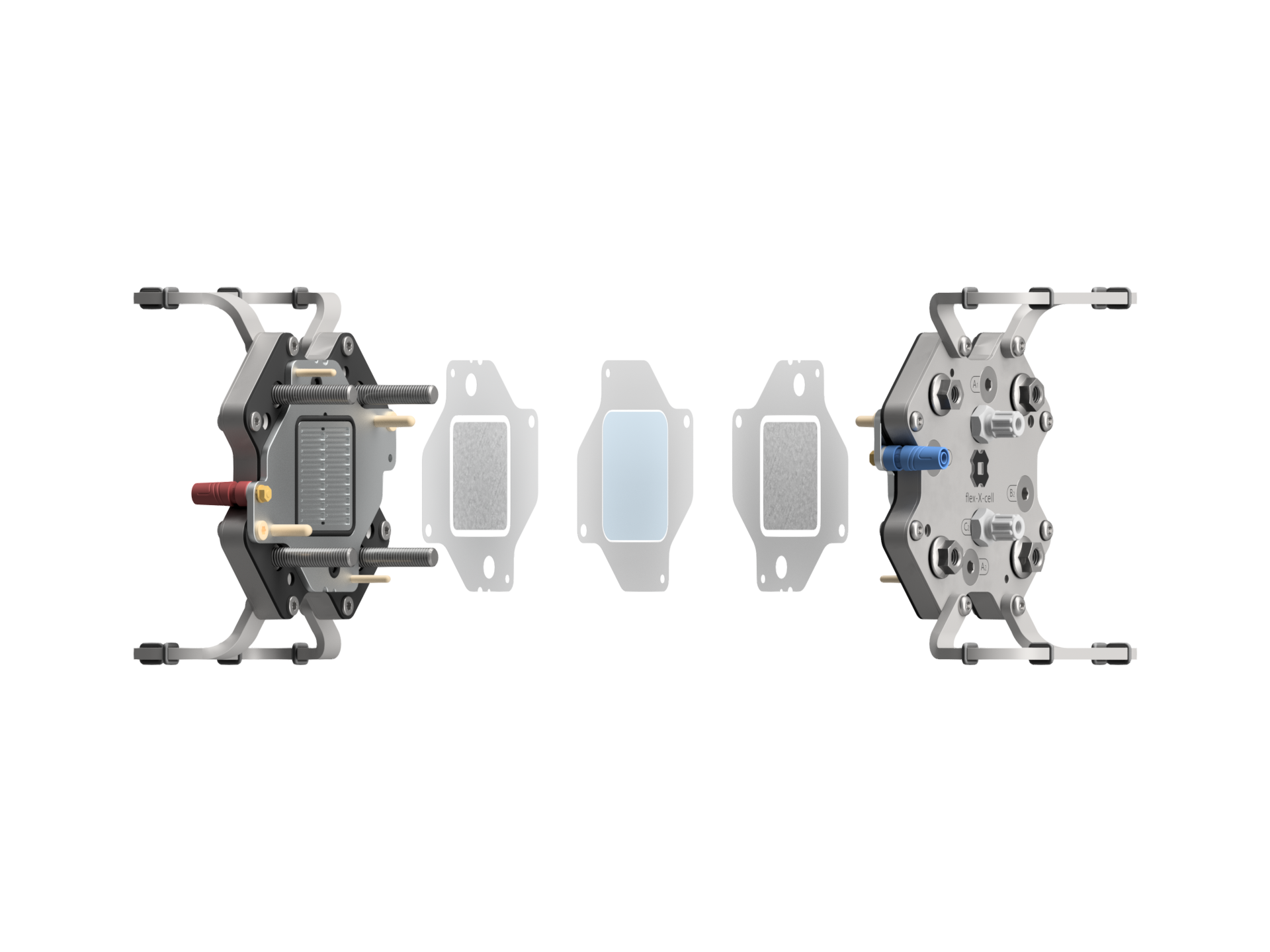

Components are listed from anode to cathode.

Components below describe the default configuration. Select available alternatives above or contact us about further customization.

End plate — Stainless steel end plate including positioning pins, screws, handles, and fluid connectors (default: stainless steel 1.4571; for 6 × 4 mm (OD × ID) tubing)¹
Insulation layer with EPDM O-rings
Anode current collector — Ni with serpentine flow field
Anode / PTL frame — 250 µm PTFE²
Membrane frame — 100 µm PTFE²
Cathode / PTL frame — 200 µm PTFE²
Cathode current collector — Ni with serpentine flow field
Insulation layer with EPDM O-rings
End plate — Stainless steel end plate including positioning pins, screws, handles, and fluid connectors (default: stainless steel 1.4571; for 6 × 4 mm (OD × ID) tubing)¹

Required separately: Membranes and electrodes are not included unless explicitly included in the selected configuration or added separately to your quotation request.

¹ Default fluid connectors; other tubing sizes and materials available on request.

² Default thickness; other thicknesses available on request.

Technical specifications

Parameter	Specification
Active area	25 cm²
Cell architecture	2 channels
Anode current collector / electrode	Ni with serpentine flow field
Cathode current collector / electrode	Ni with serpentine flow field
Maximum operating pressure	3 bar (gauge)
Maximum operating temperature	100 °C
External dimensions	Approx. 145 × 170 × 190 mm (W × D × H)
Electrical connection	4 mm banana socket, or bolted cable lug directly to the current collector
Fluid connectors	Stainless steel (1.4571) fluid connectors for 6 × 4 mm (OD × ID) tubing (other tubing sizes and PFA/PTFE alternatives on request)
O-rings	EPDM (alternatives on request: FKM, FFKM or FEP-encapsulated)
Wetted materials	Nickel, PTFE, stainless steel 1.4571 fluid connectors, and selected O-ring materials

Further customization

Additional configurations are available on request, including:

Reference electrode integration
Integrated thermostat channel for temperature control
Alternative fluid connector sizes for other tubing diameters
Alternative fluid connector materials: PFA or PTFE
Alternative O-ring materials: FKM, FFKM or FEP-encapsulated
Custom frame thicknesses and geometries
Other materials and coatings on request
Alternative flow-field geometries, e.g. parallel-channel or interdigitated
