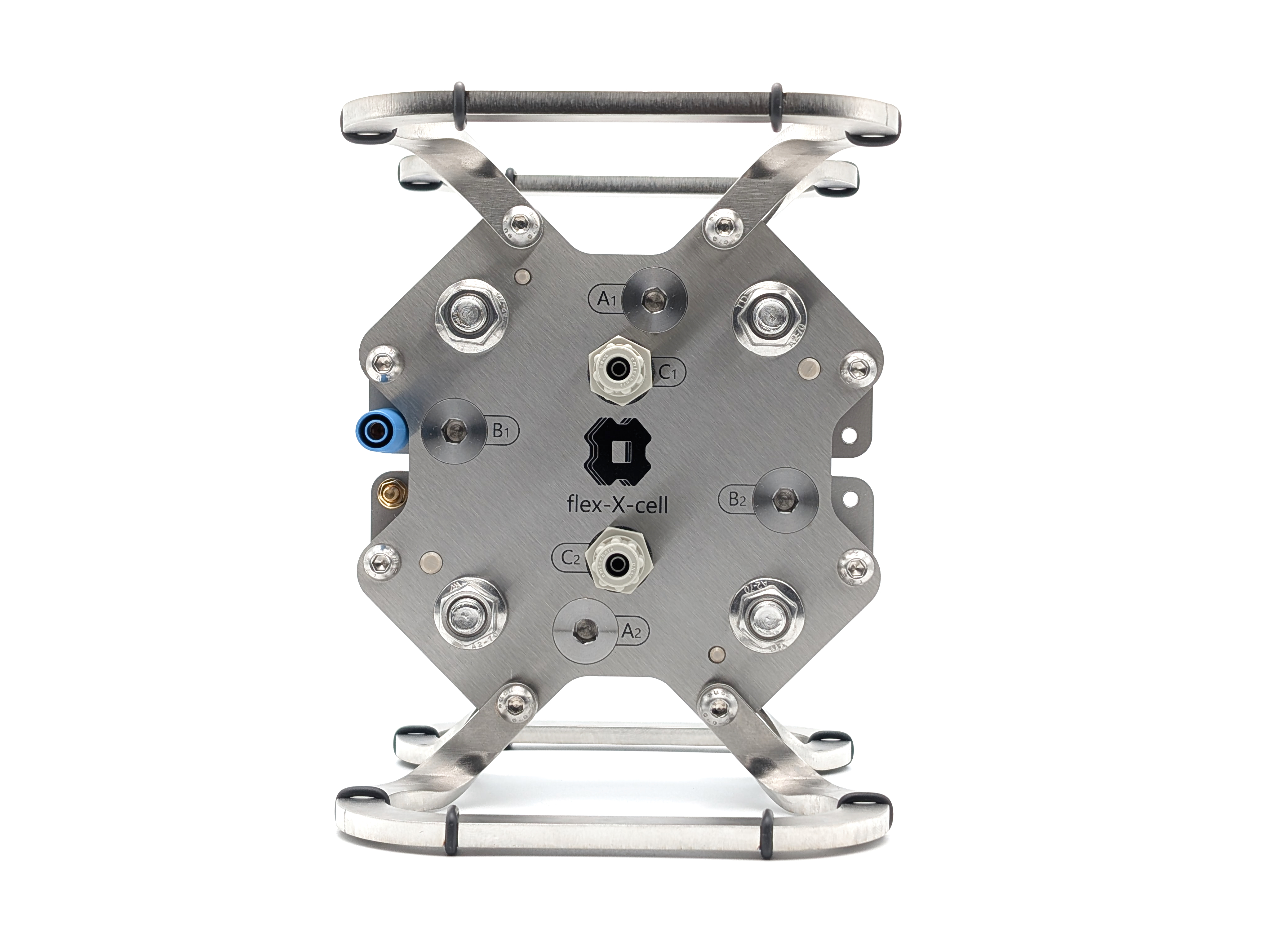

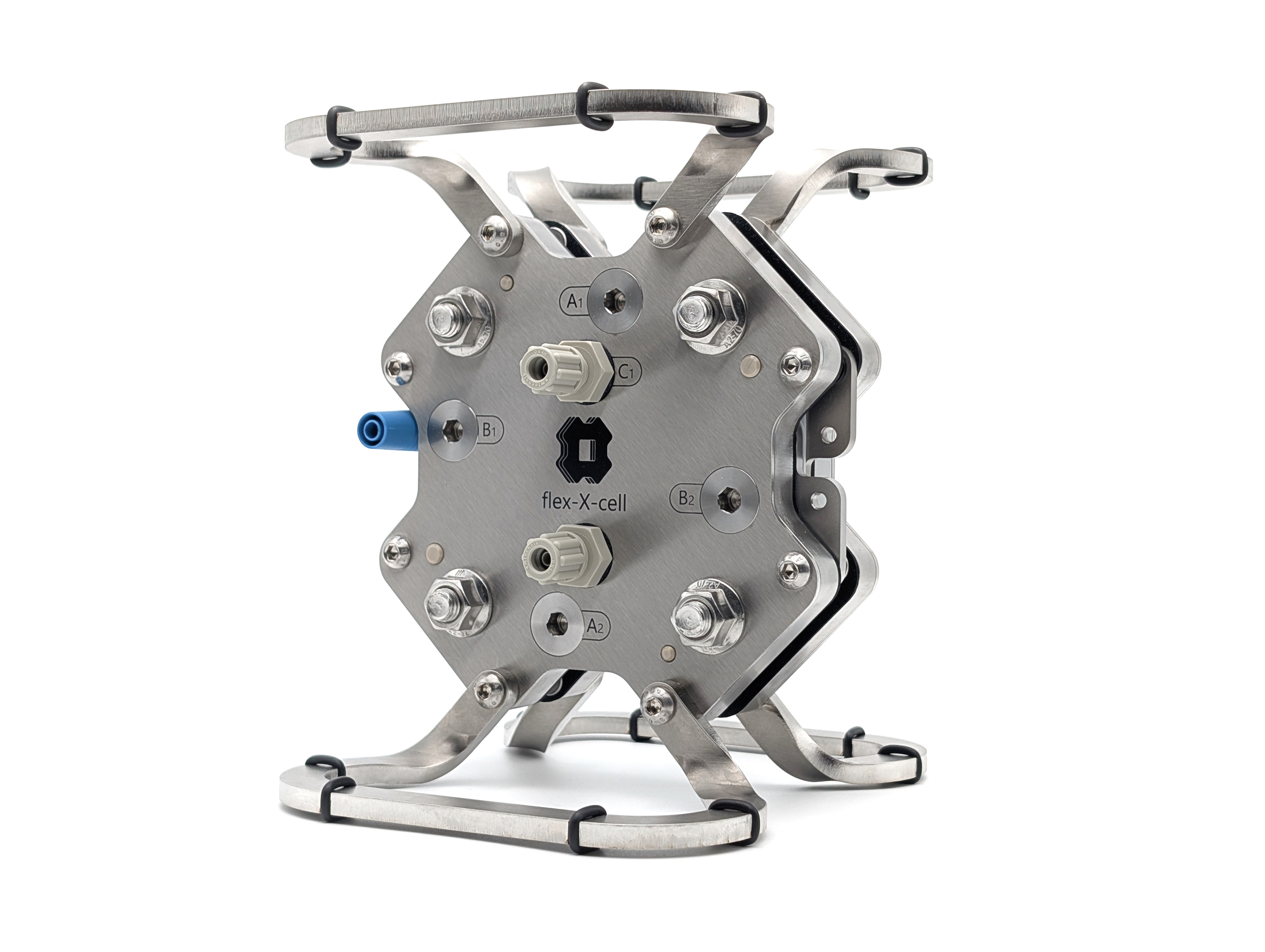

flex-X-cell M for CO₂ electrolysis (GDE)
Modular CO₂ electrolysis GDE cell with 25 cm² active area, three-channel configuration, anode options for acidic and alkaline conditions, and configurable cathode current collectors. Typical applications include gas-diffusion electrode and catalyst-layer studies, investigation of catholyte effects, and mass-transport and selectivity studies.
From€3,580
Excluding taxes. Final pricing depends on configuration and quantity.
Typical lead time: 1–3 months
ⓘ
Lead time depends on component availability and product requirements. It may be shorter when all required components are in stock. Customized products or configurations may take longer. The expected lead time will be confirmed in the quotation.
Included components

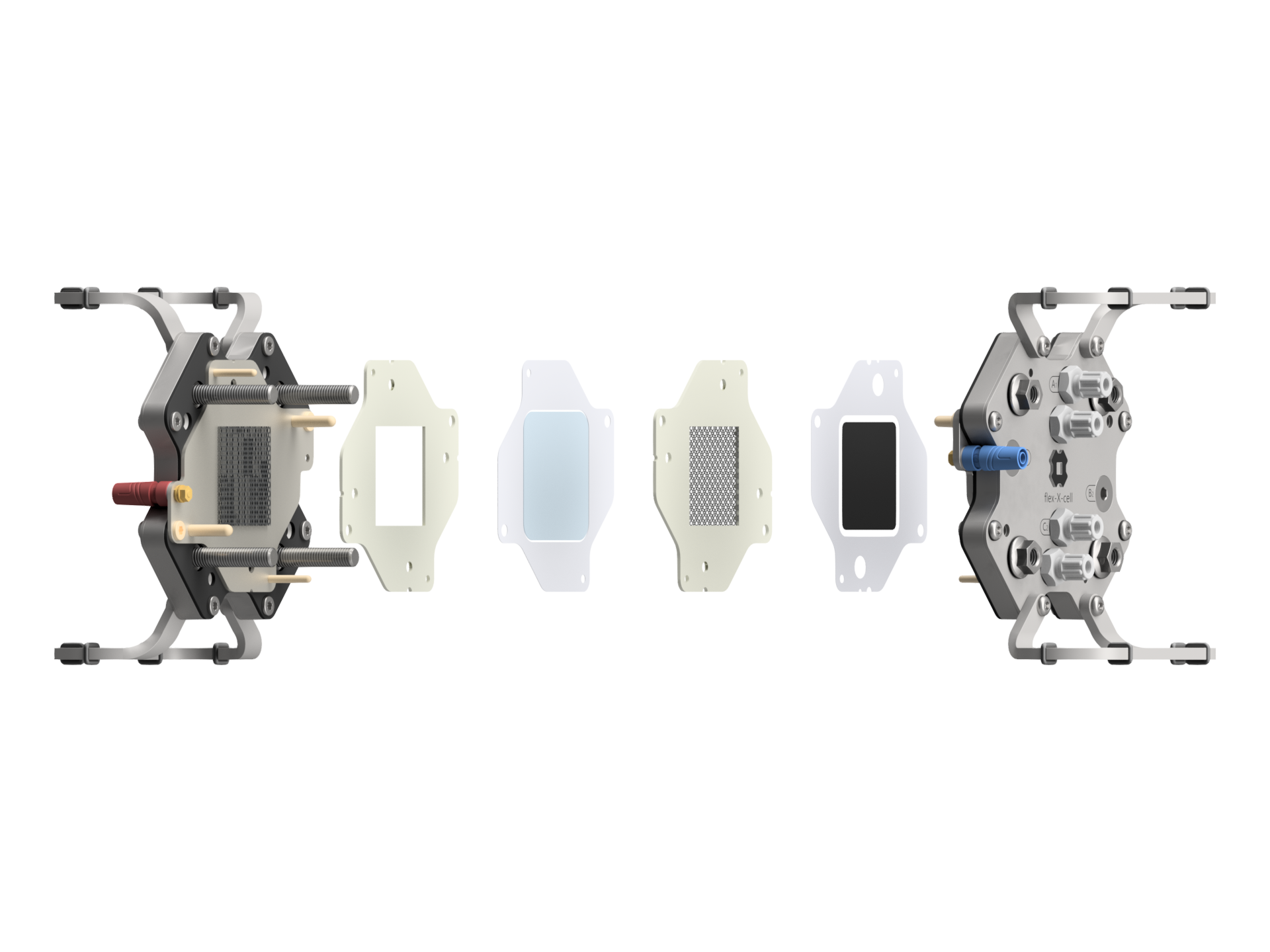

Components are listed from anode to cathode.
Components below describe the default configuration. Select available alternatives above or contact us about further customization.
- End plate — Stainless steel end plate including positioning pins, screws, handles, and fluid connectors (default: PP; for 6 × 4 mm (OD × ID) tubing)1
- Insulation layer with EPDM O-rings

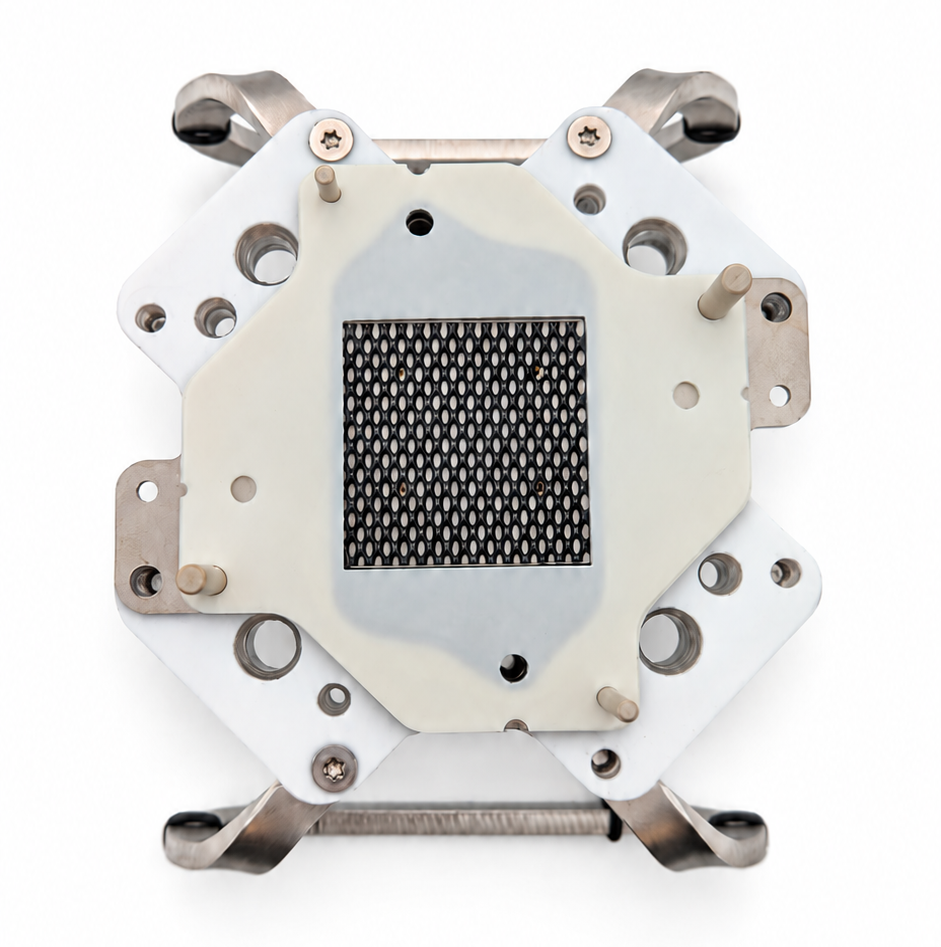

- Anode current collector / electrode — Ti sheet + welded Ir-MMO Ti mesh3
- Anolyte compartment — 2.0 mm PP/EPDM flow frame
- Membrane frame — 100 µm PTFE2
- Catholyte compartment — 2.0 mm PP/EPDM flow frame
- Cathode PTL / electrode frame — 200 µm PTFE2
- Cathode current collector — Stainless steel with serpentine flow field3
- Insulation layer with EPDM O-rings
- End plate — Stainless steel end plate including positioning pins, screws, handles, and fluid connectors (default: PP; for 6 × 4 mm (OD × ID) tubing)1
Required separately: Membranes and electrodes are not included unless explicitly included in the selected configuration or added separately to your quotation request.
1 Default fluid connectors; other tubing sizes and materials available on request.
2 Default thickness; other thicknesses available on request.
3 Default material; other materials available on request.
Technical specifications
| Parameter | Specification |
|---|---|
| Active area | 25 cm² |

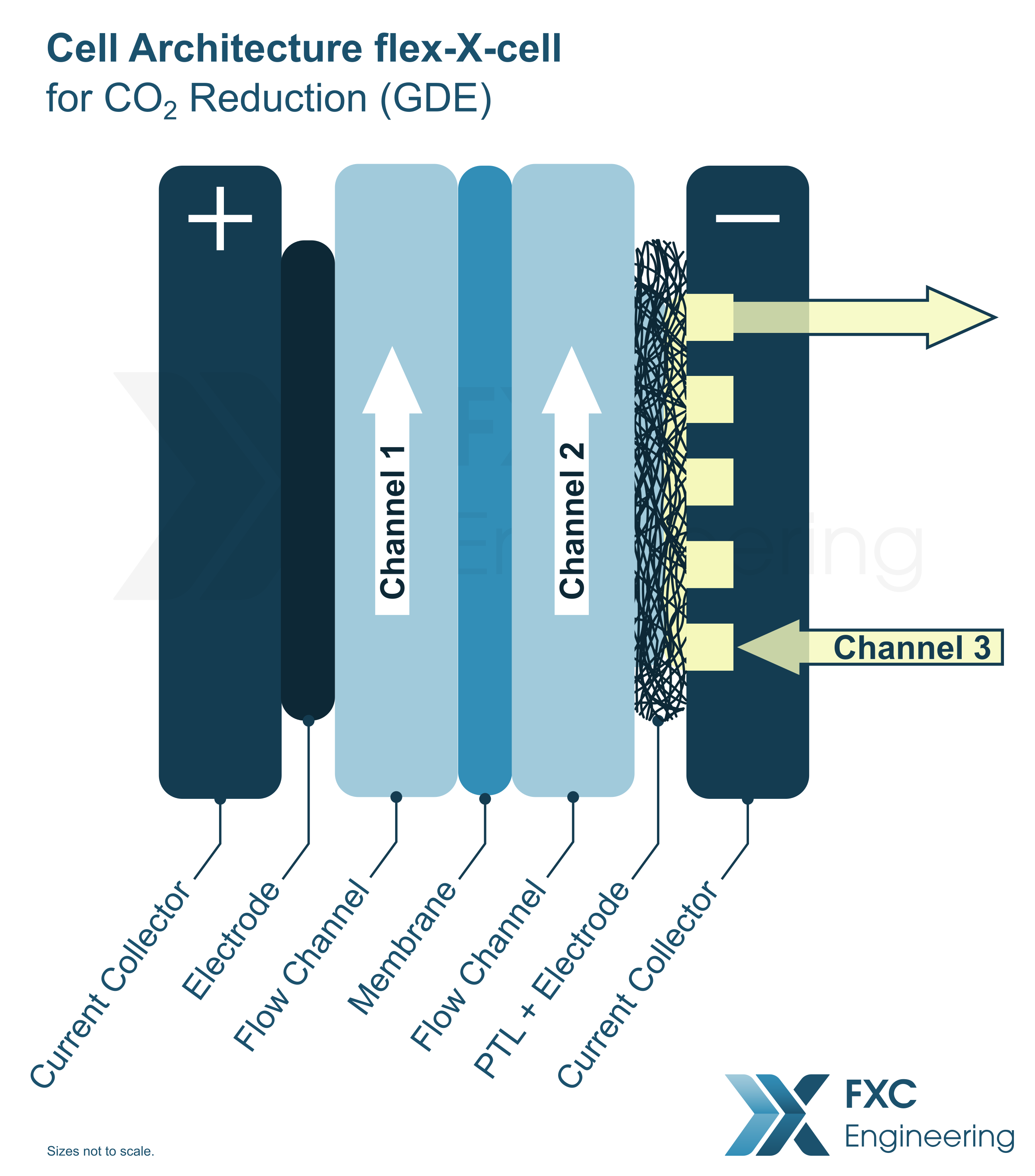

| Cell architecture | 3 channels |
| Anode current collector / electrode | Configurable — default: Ti sheet + welded Ir-MMO Ti mesh |
| Cathode current collector / electrode | Configurable — default: Stainless steel with serpentine flow field |
| Anolyte compartment | 2.0 mm PP/EPDM flow frame |
| Catholyte compartment | 2.0 mm PP/EPDM flow frame |
| Maximum operating pressure | Unpressurized operation; <0.5 bar (gauge) |
| Maximum operating temperature | 80 °C |
| External dimensions | Approx. 145 × 170 × 190 mm (W × D × H) |
| Electrical connection | 4 mm banana socket, or bolted cable lug directly to the current collector |
| Fluid connectors | PP fluid connectors for 6 × 4 mm (OD × ID) tubing (other tubing sizes and PFA/PTFE alternatives on request) |
| O-rings | EPDM (alternatives on request: FKM, FFKM or FEP-encapsulated) |
| Wetted materials | PP/EPDM, PTFE, selected current-collector/electrode (default: Ti/Ir-MMO anode and stainless-steel cathode), PP fluid connectors, and selected O-ring materials |
Further customization
Additional configurations are available on request, including:
- Reference electrode integration
- Integrated thermostat channel for temperature control
- Alternative fluid connector sizes for other tubing diameters
- Alternative fluid connector materials: PFA or PTFE
- Alternative O-ring materials: FKM, FFKM or FEP-encapsulated
- Custom frame thicknesses and geometries
- Other materials and coatings on request
- Alternative flow-field geometries, e.g. parallel-channel or interdigitated
- Noble-metal coatings for current collectors, e.g. Au or Pt
- Custom anolyte and catholyte compartment thicknesses on request
