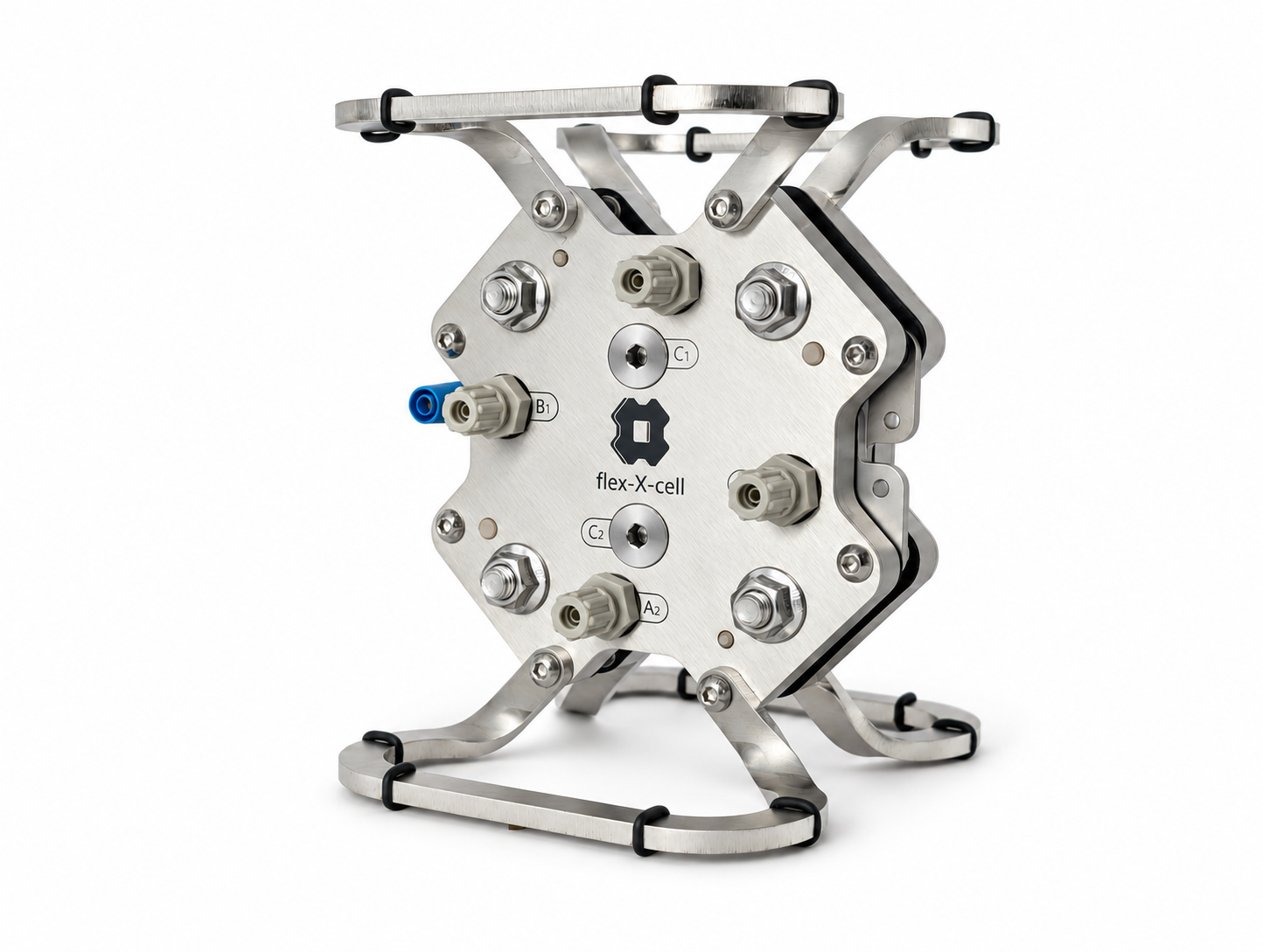

flex-X-cell M for electrodialysis

Modular electrodialysis cell with 25 cm² active area and configurable three- or four-channel architecture, anode and cathode materials, and flow-frame thickness. Typical applications include membrane testing, ion-selectivity studies, limiting-current measurements, and separation studies.

From€3,490

Excluding taxes. Final pricing depends on configuration and quantity.

Typical lead time: 1–3 months

ⓘ

Lead time depends on component availability and product requirements. It may be shorter when all required components are in stock. Customized products or configurations may take longer. The expected lead time will be confirmed in the quotation.

Configure your cell

Cell configuration

Anode

Process Channel Thickness

ⓘ

Sets the center process channel in a 3-compartment cell or both center process channels in a 4-compartment cell. The outer anode and cathode compartments remain fixed at 2.0 mm PP/EPDM. Inner process channels include PP mesh spacers.

Membrane integration

ⓘ

For thin process channels, a full-size membrane covering the sealing area is typically required. Smaller membranes with a separate membrane frame are generally used with thicker process channels. Final compatibility will be confirmed with the quotation.

Cathode

Quantity

Request quotation

Opens an email draft for this product.

Email not opening? Show request text

Quotation request

Dear FXC Engineering team,

I would like to request a quotation for the following product:

flex-X-cell M for electrodialysis, Active area: 25 cm², Qty: 1
Configuration:
- Cell configuration: 4-channel
- Anode: Ti sheet + welded Ir-MMO Ti mesh
- Process Channel Thickness: 0.5 mm with mesh spacer
- Membrane integration: No membrane frame (full-size membrane)
- Cathode: Stainless-steel sheet + welded stainless-steel mesh

Additional requirements or customization:
- ...

Best regards,

Collect multiple products for one quotation request.

Included components

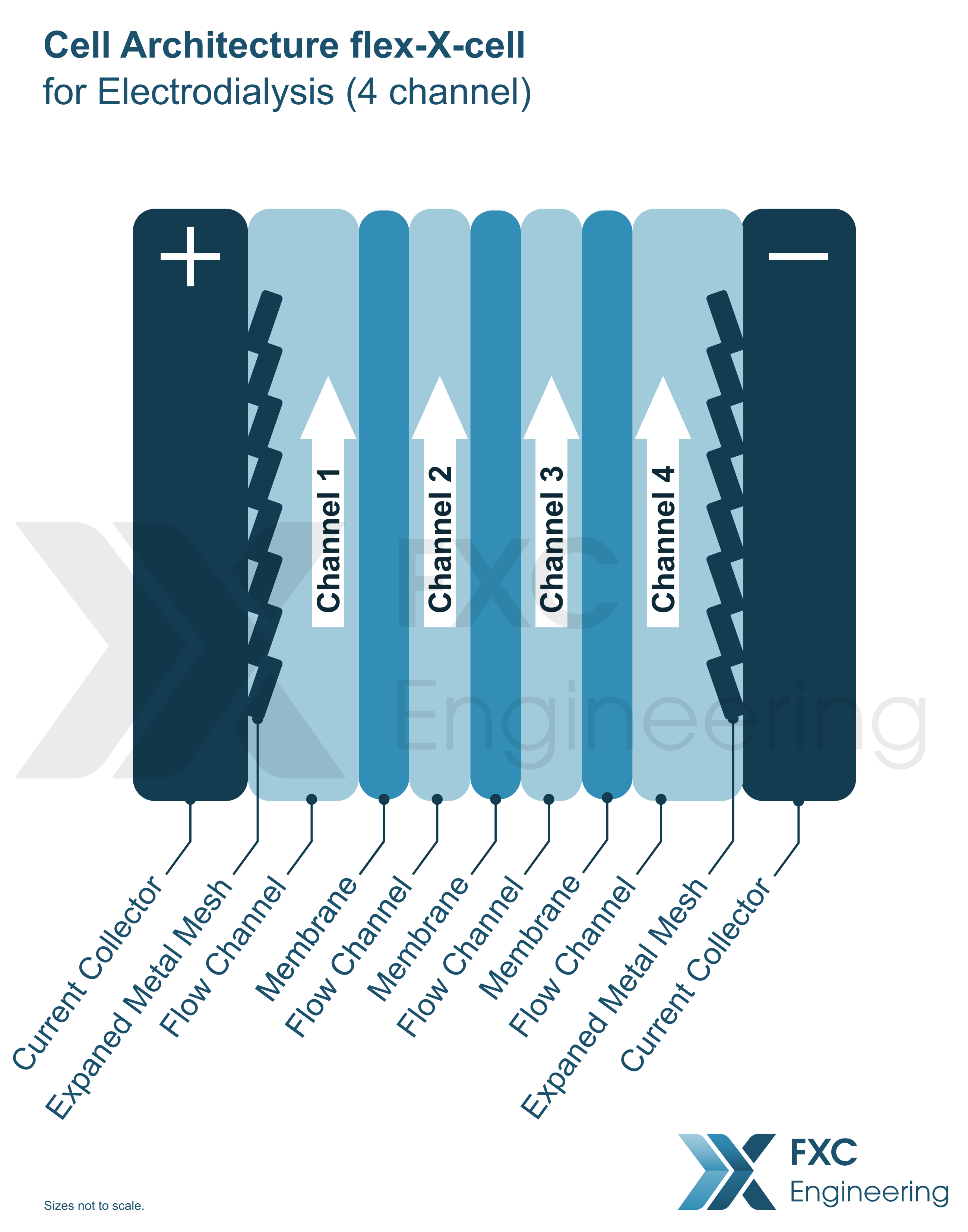

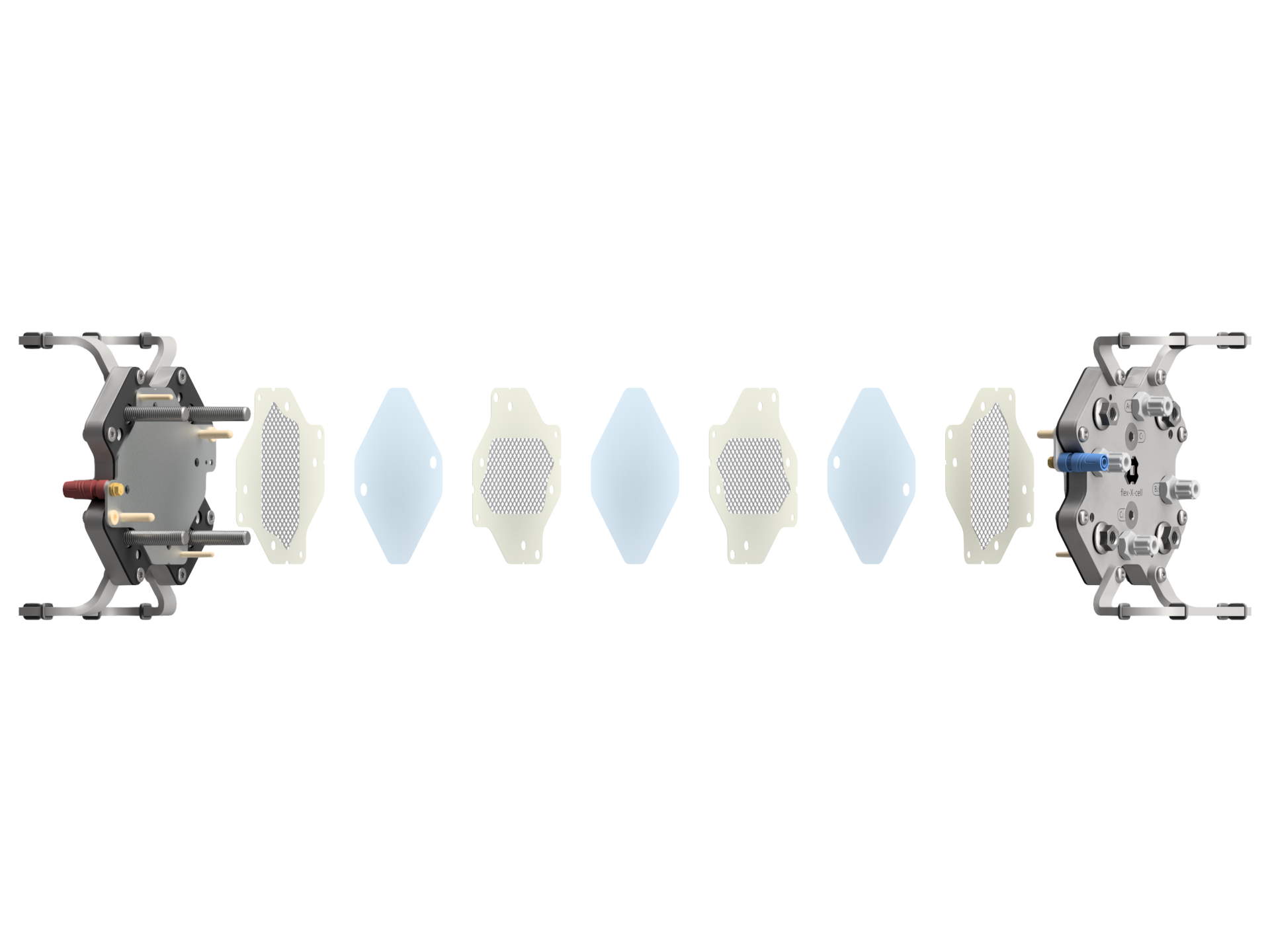

Components are listed from anode to cathode.

Components below describe the default configuration. Select available alternatives above or contact us about further customization.

End plate — Stainless steel end plate including positioning pins, screws, handles, and fluid connectors (default: PP; for 6 × 4 mm (OD × ID) tubing)¹
Insulation layer with EPDM O-rings
Anode — Ti sheet with welded Ir-MMO-coated Ti mesh³
Anode compartment — 2.0 mm PP/EPDM flow frame³
Membrane 1 — Full-size membrane; no membrane frame⁴
Process channel 1 — 0.5 mm PP/EPDM flow frame with PP mesh spacer; configurable thickness²
Membrane 2 — Full-size membrane; no membrane frame⁴
Process channel 2 — 0.5 mm PP/EPDM flow frame with PP mesh spacer; configurable thickness²
Membrane 3 — Full-size membrane; no membrane frame⁴
Cathode compartment — 2.0 mm PP/EPDM flow frame³
Cathode — Stainless-steel sheet with welded stainless-steel mesh³
Insulation layer with EPDM O-rings
End plate — Stainless steel end plate including positioning pins, screws, handles, and fluid connectors (default: PP; for 6 × 4 mm (OD × ID) tubing)¹

Required separately: Membranes and electrodes are not included unless explicitly included in the selected configuration or added separately to your quotation request.

¹ Default fluid connectors; other tubing sizes and materials available on request.

² Default thickness; other thicknesses available on request.

³ Default material; other materials available on request.

⁴ Default configuration; other options available on request.

Technical specifications

Parameter	Specification
Active area	25 cm²
Cell architecture	Configurable — 3 or 4 channels
Anode electrode	Configurable — default: Ti sheet + welded Ir-MMO Ti mesh
Cathode electrode	Configurable — default: Stainless-steel sheet + welded stainless-steel mesh
Process Channel Thickness	Configurable — default: 0.5 mm PP/EPDM with PP mesh spacer
Electrode compartments	2.0 mm PP/EPDM
Maximum operating pressure	Unpressurized operation; <0.5 bar (gauge)
Maximum operating temperature	80 °C
External dimensions	Approx. 145 × 170 × 190 mm (W × D × H)
Electrical connection	4 mm banana socket, or bolted cable lug directly to the current collector
Fluid connectors	PP fluid connectors for 6 × 4 mm (OD × ID) tubing (other tubing sizes and PFA/PTFE alternatives on request)
O-rings	EPDM (alternatives on request: FKM, FFKM or FEP-encapsulated)
Wetted materials	PP/EPDM, PP mesh spacers, selected electrode (default: Ti/Ir-MMO anode and stainless-steel cathode), PP fluid connectors, and selected O-ring materials

Further customization

Additional configurations are available on request, including:

Reference electrode integration
Integrated thermostat channel for temperature control
Alternative fluid connector sizes for other tubing diameters
Alternative fluid connector materials: PFA or PTFE
Alternative O-ring materials: FKM, FFKM or FEP-encapsulated
Custom frame thicknesses and geometries
Other materials and coatings on request
